微星 PRO H610M-S DDR4(M-ATX/1H/1xM.2/2xSATA/LAN 1Gb)+TP-LINK 藍芽+無線網卡_微星-H610-DDR4_intel 1700/H610(D4)_主機板 MB_所有產品

微星 PRO H610M-S DDR4(M-ATX/1H/1xM.2/2xSATA/LAN 1Gb)+TP-LINK 藍芽+無線網卡

付款方式

微星 PRO H610M-S DDR4(M-ATX/1H/1xM.2/2xSATA/LAN 1Gb)

Chipset	INTEL H610
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G (Qty)
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Realtek® RTL8111H Gigabit LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports
LED FEATURE	4x EZ Debug LED

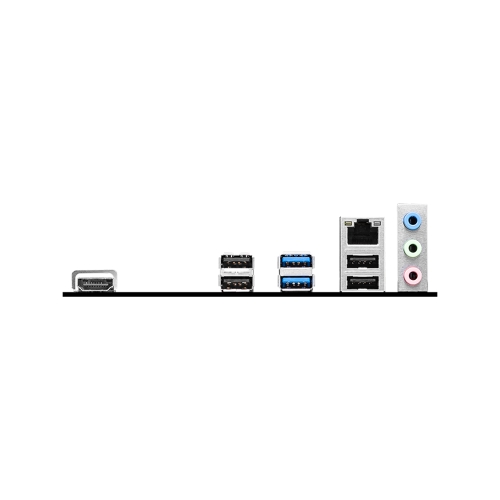

BACK PANEL PORTS	HDMI™ USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 200mmx236.16mm
商品資訊若有誤植，以原廠公佈為主
